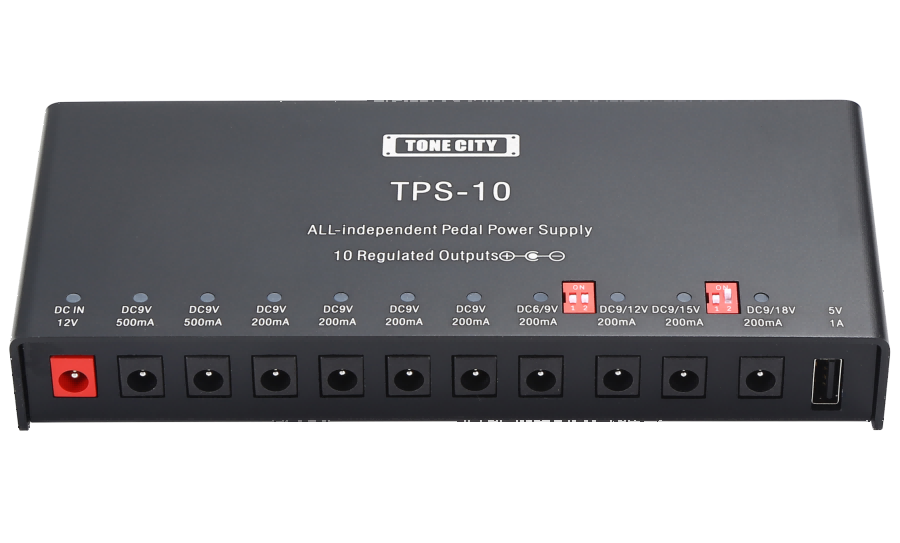

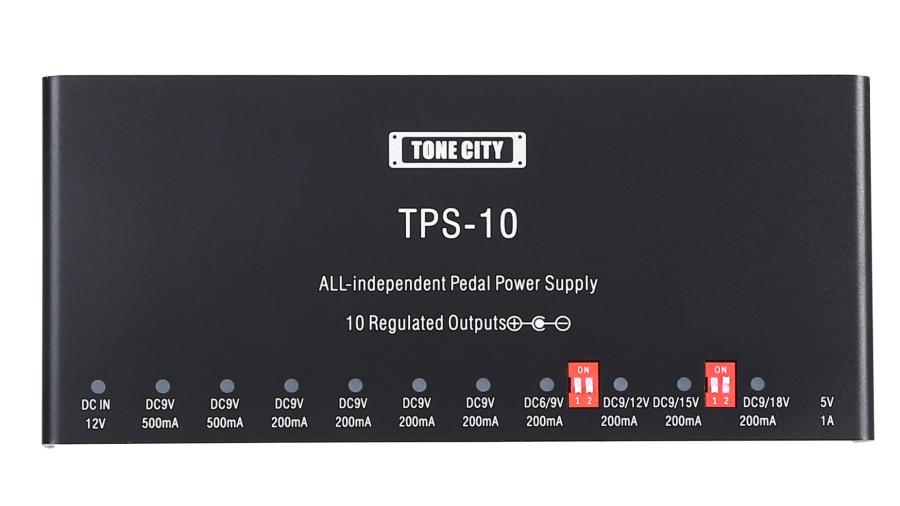

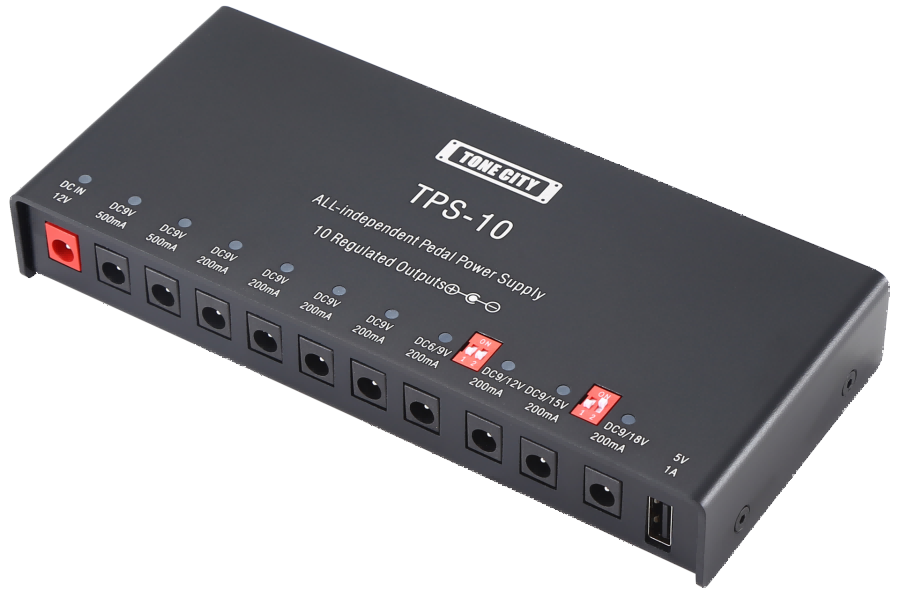

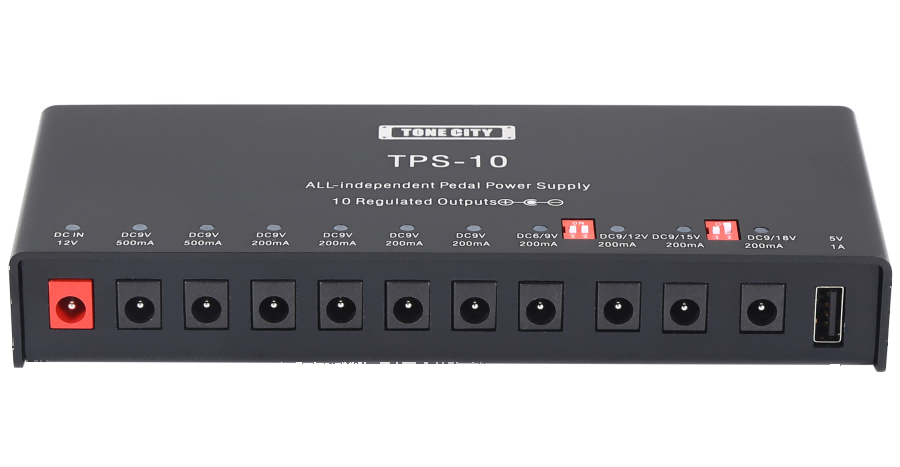

TPS-10 is a high-quality multi-output all isolated pedal power supply.
It is from the brand new TONECITY TPS series 2024, it is designed based on brand new all isolation technology, each output is truly electrically isolated. It has super carrying load capacity and Dual short-circuit protection function system.
It features:
1. 10 isolated outputs ：
2 isolated 9V output with 500mA current.
4 isolated 9V outputs with 200mA current.
1 isolated 6V/ 9V 200mA adjustable voltage output.
1 isolated 9V/ 12V 200mA adjustable voltage output.
1 isolated 9V/ 15V 200mA adjustable voltage output.
1 isolated 9V/ 18V 200mA adjustable voltage output.
2. 10 Individual status LED one ach output and DC input.
3. Dual short-circuit protection systems
& UHS IC with Auto-Volt Compensation Function.
4. Superior Carrying Load Capacity.
5. Low Interference, Low Noise and Low-heated.
6. Low weight, easy to carry anywhere.
About the Dual short circuit protection systems.
1 short-circuit protection circuit design for each output. An IC with short-circuit protection function for each output. When any single or more output occurs short circuit, output will be quickly cut off, corresponding red LED light will be off to help users quickly find out fault points. When the fault is eliminated, the red LED light will be on. Along with this process, the other output will not be affected. These ensure the safety of the music equipment and the stability of the playing.
