Input: DC 12V/3A Adapter
Outputs: DC 9V/500mA *1
DC 9V/200mA *4
Dimensions: 9.4*8.1*2.3(cm)
Body Weight: 188g
|

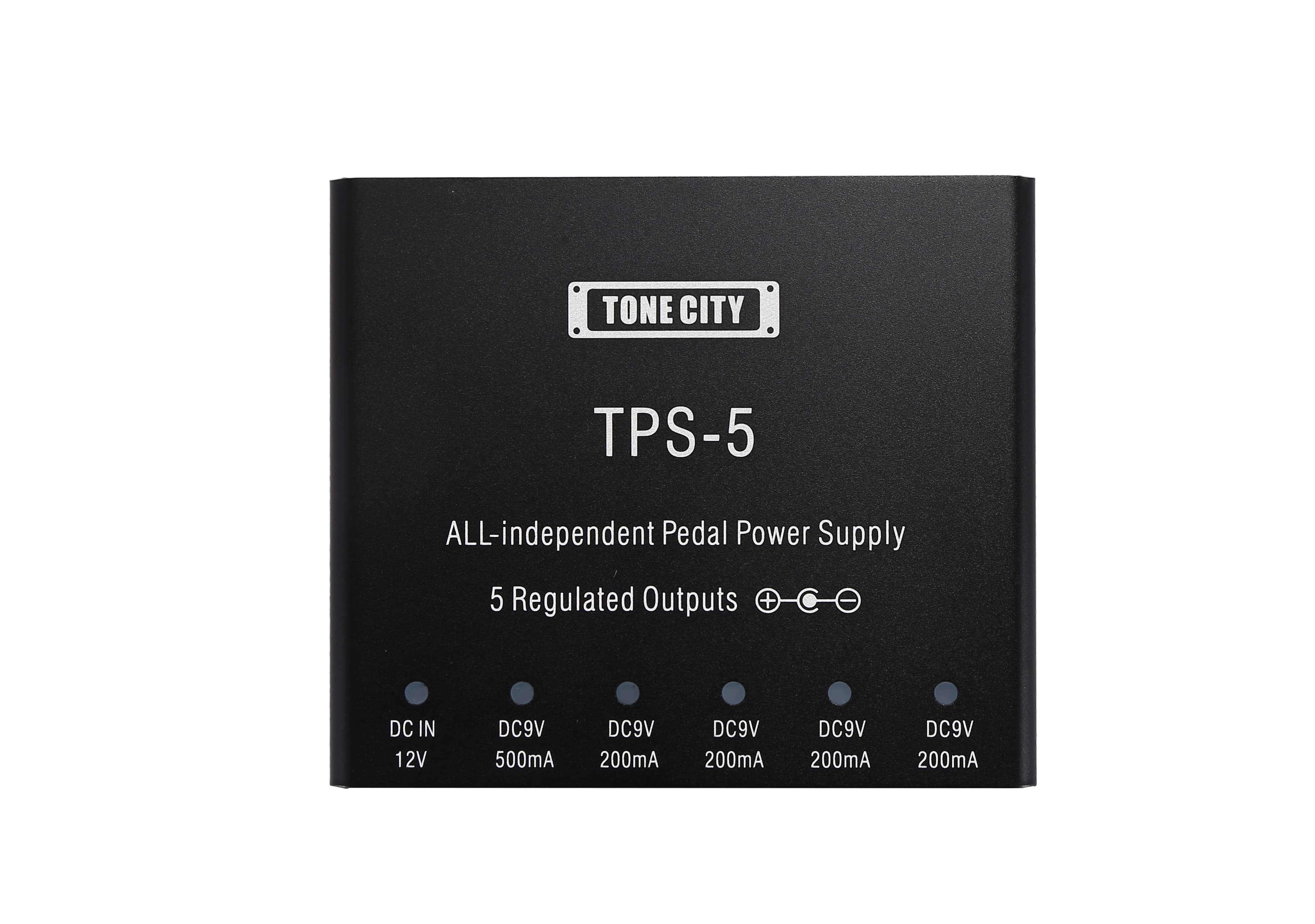

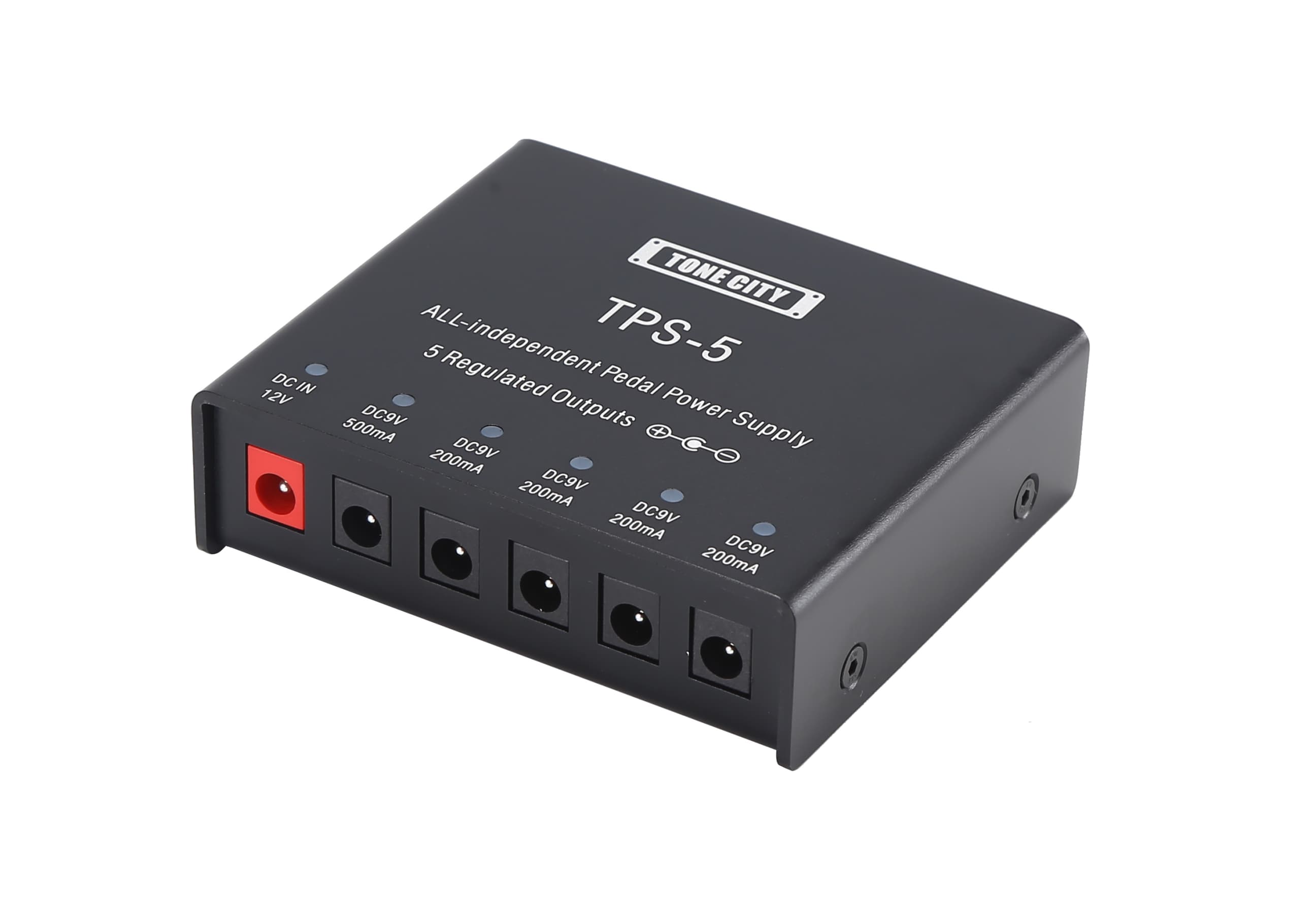

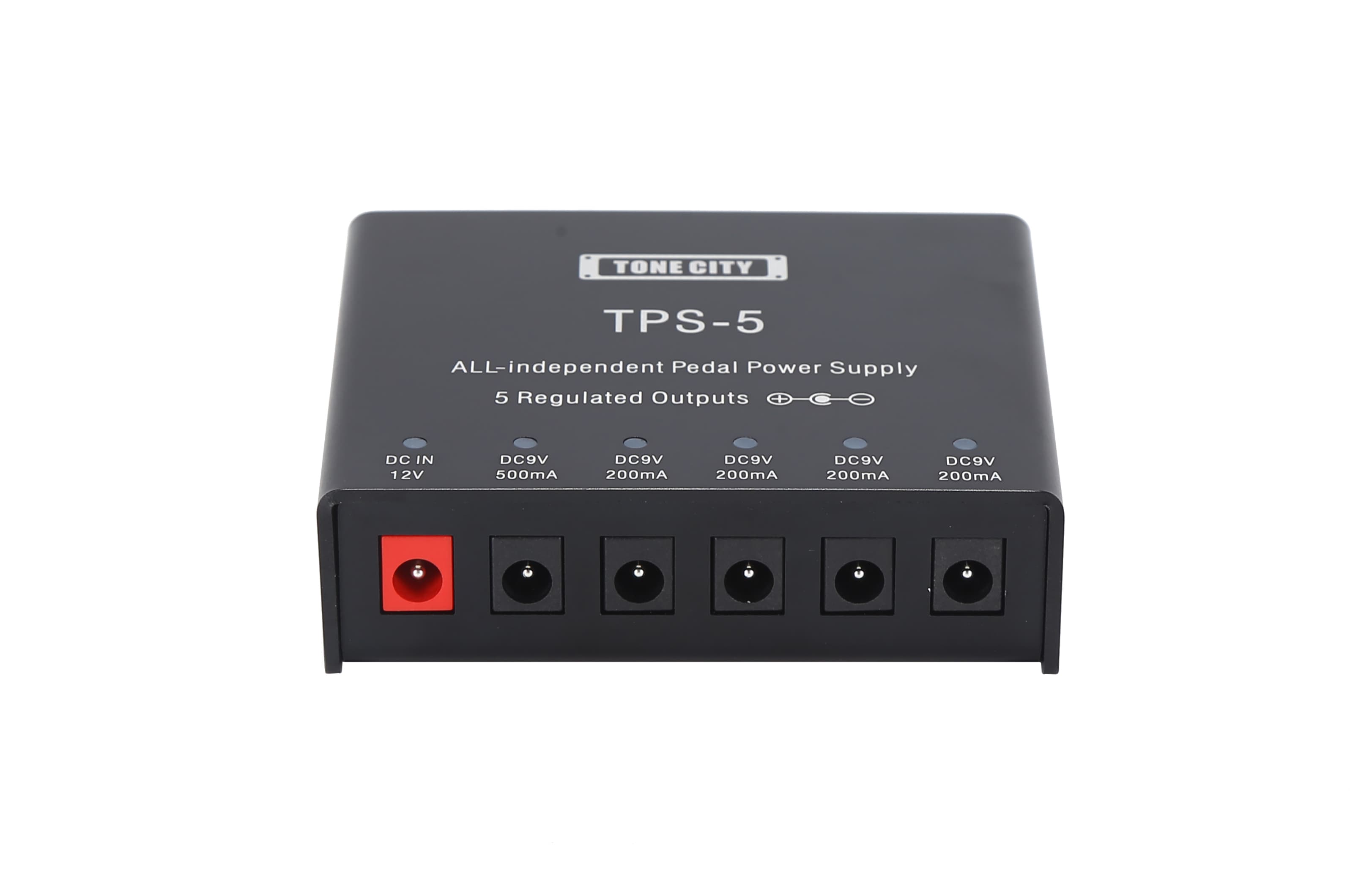

TPS-05 is a high-qualitymulti-output all isolated pedal power supply.
It is from thebrand new TONECITY TPS series 2024, it is designed based on brand new allisolation technology, each output is truly electrically isolated. It has super carrying load capacity and circuitprotection function system!
It features:
1. 5 isolated outputs ：
1isolated 9V output with 500mA current,
4isolated 9V outputs with 200mA current.
2. 5 Individual status LED on each output and DC input
3. Dualshort-circuit protection systems
& U-H-SIC with Auto-Volt Compensation Function.
4. SuperiorCarrying Load Capacity.
5. LowInterference, Low Noise and Low-heated.
6. Lowweight, easy to carry anywhere.
About the Dual short circuit protectionsystems.
Ashort-circuit protection circuit design for each output. An IC withshort-circuit protection function for each output. When any single or moreoutput occurs short circuit, output will bequickly cut off, corresponding red LED light will be off to help usersquickly find out fault points. When the fault is eliminated, the red LED lightwill be on. Along with this process, the other output will not beaffected. These ensure the safety of the music equipment and the stability of the playing.
